Productdetails:
|
| Stroom: | 1,5 kW | Spanning: | 220V |
|---|---|---|---|
| Voeding: | 220V/1Ph/50Hz | Snelheid: | 11 stks/minuut |
| Papieren dikte: | 1080mm | Maximale blokgrootte: | 350 x 420 mm |
| Min. blokgrootte: | 100 x 100mm | Machinedimensie: | B700L850H1550mm |
| Verpakkingsdimensie: | L1000*B820*H1740MM | Netto gewicht: | 270 kg |
| Grof gewicht: | 350 kg | Model NO: | MF-HBM420 |
| Centrale verwerkingseenheidsmacht: | 1,5 kW | dikte van het boek: | 1080mm |
| Automatische rangschikking: | Semi-automatisch | ||
| Markeren: | 220V Book Block Head Band Machine,1.5KW Head Tail Pasting Machine,11pcs/minute Endband Machine |
||
| Model No | MF-HBM420 |
|---|---|
| Power Supply | 220V, 1Phase, 50HZ |
| Mainframe power | 1.5kw |
| Work Speed | 11PCS/minute |
| Book Block Thickness | 10-80mm |
| Book Block Size (Max) | 350x420mm |
| Book Block Size (Min) | 100x100mm |
| Packing size (L×W×H) | L1000*W820*H1740MM |
| Machine Weight | 2700KG (Net); 350KG (Gross) |

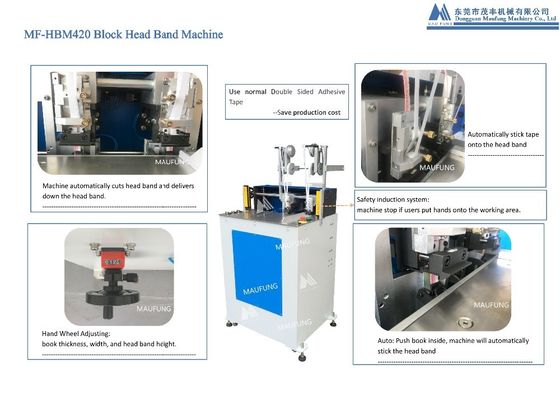

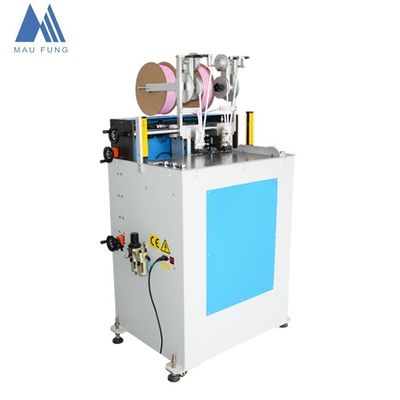

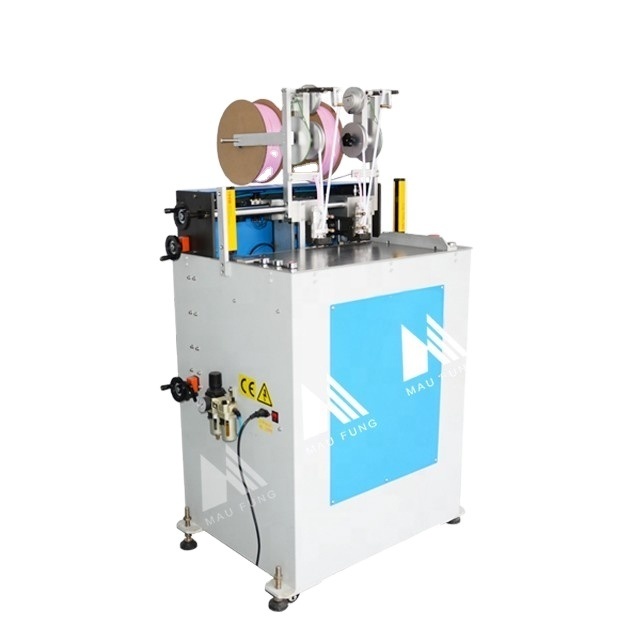

The Book Block Head Band Machine is a flexible and compact solution for applying head and tail bands to both round and square book blocks. Ideal for medium and small book binding operations, this machine attaches the head band to a glue strip before application to the book spine, eliminating the need for post-production cleaning.
Dongguan Maufung Machinery Co., Ltd., located in Wanjiang district, Dongguan city, specializes in manufacturing case-making equipment for hardcover books, post-printing processes, packaging solutions, and automatic gift box machines.
Our product range includes Photo Book Lay Flat Machines, Book Block Head Band Machines, Semi-Auto Case Makers, and various book binding equipment. Our MAUFUNG brand is recognized domestically and exported to over 100 countries worldwide.
We adhere to strict quality standards and offer comprehensive after-sales services including installation, adjustment, and maintenance support.
