Name: Pneumatic Double Head Round Corner Cutting Machine with 100mm Cutting Thickness 23 times/min Working Speed and 490*450mm Max Paper Size
Brand: DONGGUAN MAUFUNG MACHINERY CO.,LTD
Price: 8.00 USD
Availability: InStock

Thuis Producten Notebookbindmachine

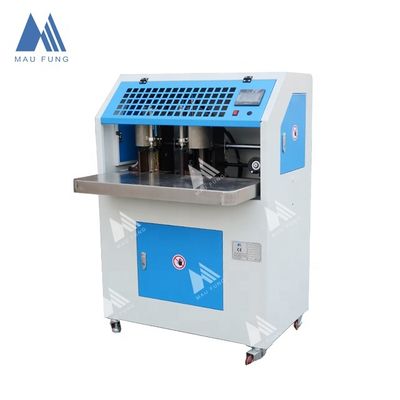

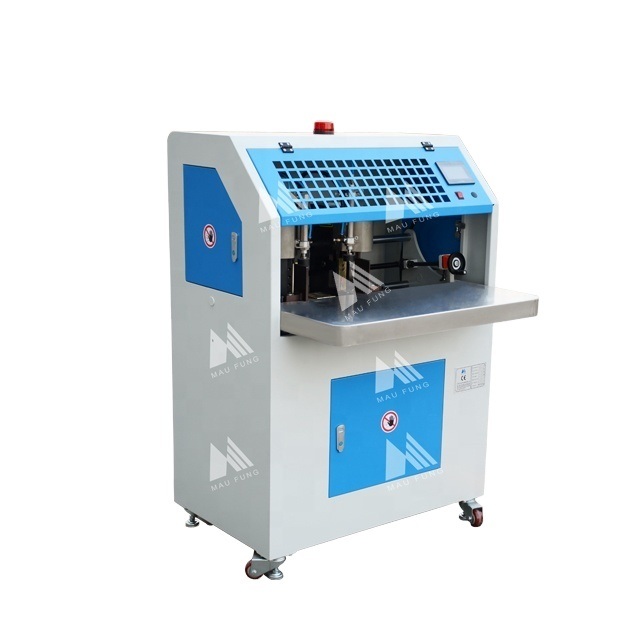

Pneumatic Double Head Round Corner Cutting Machine with 100mm Cutting Thickness 23 times/min Working Speed and 490*450mm Max Paper Size

Productdetails:

Plaats van herkomst:	Guangdong, China
Merknaam:	MAUFUNG

Betalen & Verzenden Algemene voorwaarden:

Min. bestelaantal:	1
Prijs:	$8,000-9,000

Contact

Gedetailleerde productomschrijving

Stroom:	1,5 kW	Spanning:	220V/50Hz
Dimensie:	9608701390mm	Gewicht:	220 kg
Snijdend dikte:	100 mm	Werksnelheid:	23 keer/min
Min papierformaat:	105 x 50 mm	Max papierformaat:	490*450 mm
Het werk lijstgrootte:	860*380 mm	Luchtdruk:	6-8bar
Ronde hoekvorm:	1/8'',3/16'',1/4'',5/16'',3/8'',7/16'',1/2''	Automatische rangschikking:	Automatisch
Machine -afmetingen:	9608701390mm	Netto gewicht:	220 kg
Model NO:	MF-DCM470
Markeren:	100mm Cutting Thickness Round Corner Cutting Machine , 23 times/min Working Speed Book Cutting Machine , 490*450mm Max Paper Size Notebook Cutting Machine

Pneumatic Double Head Angle Cutting Machine Book Round Corner Cutting Machine Notebook Cutting Machine

Product Specifications

Model No	MF-DCM470
Power Supply	220V /50HZ
Max Paper size	490*450mm
Min Paper size	105*50mm
Max cutting thickness	100mm
Round corner mold	1/8''，3/16''，1/4''，5/16''，3/8''，7/16''， 1/2''，9/16''，5/8''，3/4''，7/8''， 1'
Working Table size	860*380mm
Air pressure	6-8bar
Machine Dimensions (LWH)	9608701390mm
Working Speed	23 times/min
Weight	220kg

Pneumatic double head with max cutting 100mm thickness.

Touch screen for convenient operation.

Applications

MF-DCM470 Hydraulic Double-head Angle Cutting Machine applies to books, playing cards, invitations, trademarks, business cards and other printing and cutting round, triangle shape. This machine uses hydraulic system. It can cut two sides of angles one time with simple operation and high efficiency.

Certifications

Company Information

We Dongguan Maufung Machinery Co., Ltd is a leading manufacturer in the hard cover books binding machines and Rigid Box packaging machines. Our company mainly produces Photo Book Lay Flat Machine, Book Block Head Band Machine, Semi Auto Case Maker, Hard Cover Book Case In Machine, Hard Cover Book Pressing & Creasing Machine, Book Block Rounding Machine, fully automatic punching machine, hydraulic impacting spine machine, wire O binding machines, rigid box forming machines, etc. We possess our independent well-known brands MAUFUNG.

We take the quality and after-sale service as the core of our business which makes our brand good fame in the world. And we have a very professional R&D team with over 20 years experience in this line. We care about the market trends, focus on the machine quality and performance, and attach great importance to customers demand. Products sell well in China and have been exported to more than 100 countries.

Exhibition Participation

We took part in South Print Exhibition each year, Print China Exhibition, China Print Exhibitiion and Shanghai All in Print Exhibition, and also 2019 Egypt Techono print, 2016 Drupa exhibition, 2015 Dubai Gulf Print & Pack etc. We will take part in 2020 Drupa Exhibition. Looking Forward to meeting you in our booth 6/D95.
