Automatic Notebook Binding Machine with Max Punching Paper 430x350mm Min Punching Paper 145x100mm and 3mm Thickness Layers

Automatic Notebook Binding Machine with Max Punching Paper 430x350mm Min Punching Paper 145x100mm and 3mm Thickness Layers

  • Automatic Notebook Binding Machine with Max Punching Paper 430x350mm Min Punching Paper 145x100mm and 3mm Thickness Layers
  • Automatic Notebook Binding Machine with Max Punching Paper 430x350mm Min Punching Paper 145x100mm and 3mm Thickness Layers
  • Automatic Notebook Binding Machine with Max Punching Paper 430x350mm Min Punching Paper 145x100mm and 3mm Thickness Layers
  • Automatic Notebook Binding Machine with Max Punching Paper 430x350mm Min Punching Paper 145x100mm and 3mm Thickness Layers
  • Automatic Notebook Binding Machine with Max Punching Paper 430x350mm Min Punching Paper 145x100mm and 3mm Thickness Layers
  • Automatic Notebook Binding Machine with Max Punching Paper 430x350mm Min Punching Paper 145x100mm and 3mm Thickness Layers
Automatic Notebook Binding Machine with Max Punching Paper 430x350mm Min Punching Paper 145x100mm and 3mm Thickness Layers
Productdetails:
Plaats van herkomst: Guangdong, China
Merknaam: MAUFUNG
Betalen & Verzenden Algemene voorwaarden:
Min. bestelaantal: 1
Contact
Gedetailleerde productomschrijving
Automatische rangschikking: Automatisch Machine -afmetingen: 2200x1300x2000mm
Spanning: 380V/220V Gewicht: 1350 kg
Maximaal ponspapier: 430X350mm Min Ponspapier: 145 x 100 mm
Dikte van lagen: 3 mm Geschikt document: 45-60 g
Snelheid: 80-100 cycli/min Voeding: 380V/220V, 50hz
Netto gewicht: 100 kg Grof gewicht: 250 kg
Modelnummer: MF-APM430 Kerncomponenten: PLC, motor, lager, versnellingsbak, motor, drukvat, versnelling, pomp
Type: ponsenmachine
Markeren:

Max Punching Paper Notebook Binding Machine

,

Min Punching Paper Punching Machine

,

3mm Thickness Double Wire Binding Machine

Double Wire Binding Machine / MAUFUNG MF-APM430 Notebook Paper Punching Machine, Calendar Making Machine
Contact: Whats App/wechat: +86 137 1205 9458 | Email: maufung08@mfjx.net
Product Specifications
Model No MF-APM430
Power Supply 380V/220V, 50HZ
Max Punching Paper 430x350mm
Min Punching Paper 145x100mm
Thickness Of Layers Up To 3mm
Suitable Paper 45-60g
Speed 80-100 Cycles/min
Machine Dimensions (LxWxH) 2200x1300x2000mm
Machine Weight 100KG (Net), 250KG (Gross)
Product Images

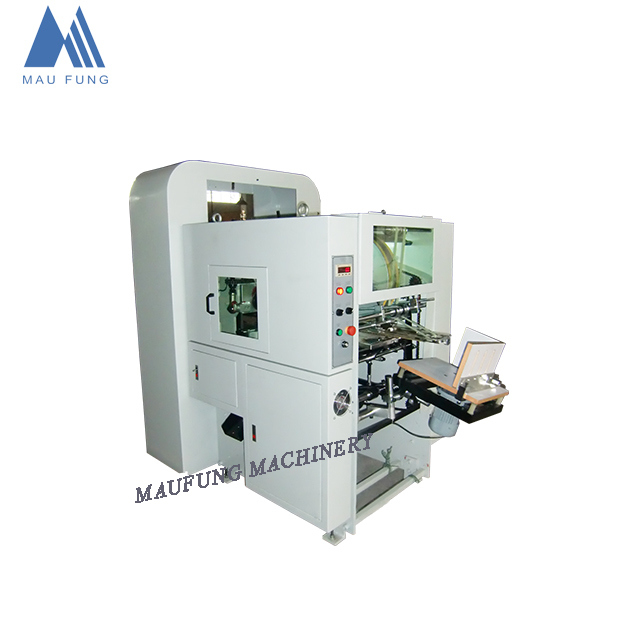

MAUFUNG MF-APM430 Double Wire Binding Machine Close-up view of MF-APM430 punching mechanism MF-APM430 machine side view MF-APM430 control panel MF-APM430 in operation Finished product sample from MF-APM430
Key Features
  • New design - Easy to maintain and operate
  • High efficiency with extreme production capability
  • Advanced motor control driving technique
  • Operated by one person in limited space
  • Highest speed exceeds 140,000 sheets (70g) per hour
  • Applicable for coil bindings (paper or plastic)
  • Reverse function of overturn wheel ensures product sequence
  • Easy work system with simple size adjustment
  • Widely used for high-profit production
Related Products
MF-SSM720 Semi Automatic Spiral Book Binding Machine
MF-SSM720 Semi Automatic Spiral Book Binding Machine
MF-SDM520 Semi Automatic Double Wires Binding Machine
MF-SDM520 Semi Automatic Double Wires Binding Machine
MF-SCM500A Semi Auto Case Maker
MF-SCM500A Semi Auto Case Maker
Certifications
MAUFUNG Certifications
Frequently Asked Questions
1. Is your company a factory or trading company?
Our company is a factory.
2. What about the samples?
You can visit our factory if you'd like.
3. How to install the machine?
After-sales Service Provided:
- Online support
- Free spare parts
- Field installation, commissioning and training
- Field maintenance and repair service
- Video technical support
4. What if the machine can't work?
We are available 24 hours online.
5. How long is the warranty period?
One year.
6. What certificates does the machine have?
Our machines all have CE certificates and Certificates of origin.
